Project Study
- Garage & RV Steel Building
- Arroyo Grande, CA
- Red Iron Steel
- 4,600 sq ft
Project Overview

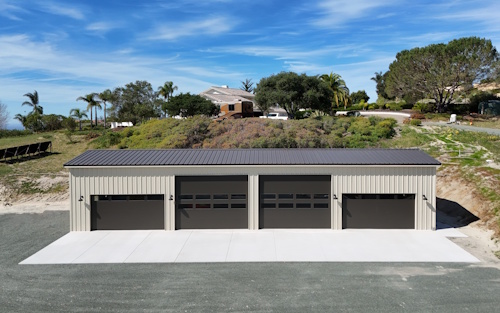

This project involved the design and construction of a garage and RV storage steel building for an individual in Arroyo Grande, CA. This vast storage space is intended to provide plenty of storage for multiple full size RVs and other vehicles, equipment, and light shop work within a single integrated structure.
The building utilizes a pre-engineered red iron steel frame system, chosen for its durability, cost efficiency, and ability to provide large clear-span spaces.
Mezzanine: 60 ft × 40 ft = 2,400 sq ft
Total Usable Area: 7,200 sq ft
Layout Concept
Ground level: Open shop floor (majority of space), storage zones along perimeter, restrooms and utility areas
Mezzanine: Offices and meeting rooms overlooking shop, administrative workspace
This layout separates noisy shop operations from quieter office functions while maintaining visual connectivity.
Structural System
Type: Red iron steel frame (pre-engineered metal building)
Key Features: Capability for open shop space, high strength-to-weight ratio, resistance to fire, pests, and weathering; efficient prefabrication and rapid assembly
The mezzanine is supported by the primary steel frame and secondary structural members designed to handle office occupancy loads.
Materials and
Construction
Primary Structure: Structural steel (red iron)
Wall System: Insulated metal panels
Roofing: Metal roofing system with thermal insulation
Insulation: Installed to improve energy efficiency and indoor comfort
Flooring: Concrete slab (shop floor), and elevated steel deck with finished flooring (mezzanine)
Functional Areas
Office Space (Mezzanine): Private offices, open workstations, conference/meeting area
Shop Floor (Ground Level): Equipment workspace, fabrication/maintenance area
Storage: Materials and tool storage zones
Restrooms: Located on ground level for accessibility
Construction Timeline
Total estimated duration: 18 weeks
Phases:
- Design & Engineering Drawings
- Site Preparation & Grading
- Foundation Construction
- Steel Frame Erection
- Building Enclosure (walls & roof)
- Mezzanine Installation
- Interior Build-Out (offices, restrooms)
- Final Inspection & Completion
The use of pre-engineered steel significantly reduces construction time compared to traditional building methods.
Budget
Status: Budget requirements
have been met
Steel construction helps control costs through: Reduced labor time, minimal material waste, faster project completion
Advantages of the Design
- Efficient use of vertical space with mezzanine
- Flexible open floor plan for changing operational needs
- Durable, low-maintenance materials
- Faster construction timeline
- Cost-effective for commercial/industrial use
Conclusion
This steel building project provides a practical and efficient solution for a construction company’s operational needs. By combining office, shop, and storage functions into a single structure, the design improves workflow, maximizes space utilization, and maintains cost and time efficiency. The use of a red iron steel frame ensures long-term durability and adaptability for future growth.
